AirULTRA-C(RGBC)
SKU: AirULTRA-C(RGBC) 2.6/3.9
Category: Indoor
CreateLED's AirULTRA-C(RGBC) LED display is the super light version of our classic AirULTRA range.
Designed with super light weight and thin in mind, with high precision mechanism and angle locking system, AirULTRA-C(RGBC) can be concave and convex. Super high contrast ratio, superior colour fidelity and mechanical accuracy of the AirULTRA-C(RGBC) range combine impeccably to form the ultimately high-resolution outdoor LED display.
Advanced High Definition Indoor LED Display
• Energy-Saving and Eco-Friendly
• Superior Color Performance
• Super Slim and Super Light Panel Design
• Compatible with Curved and Flat Screen Splicing
• Anti-Interference, Adaptable to Various Applications

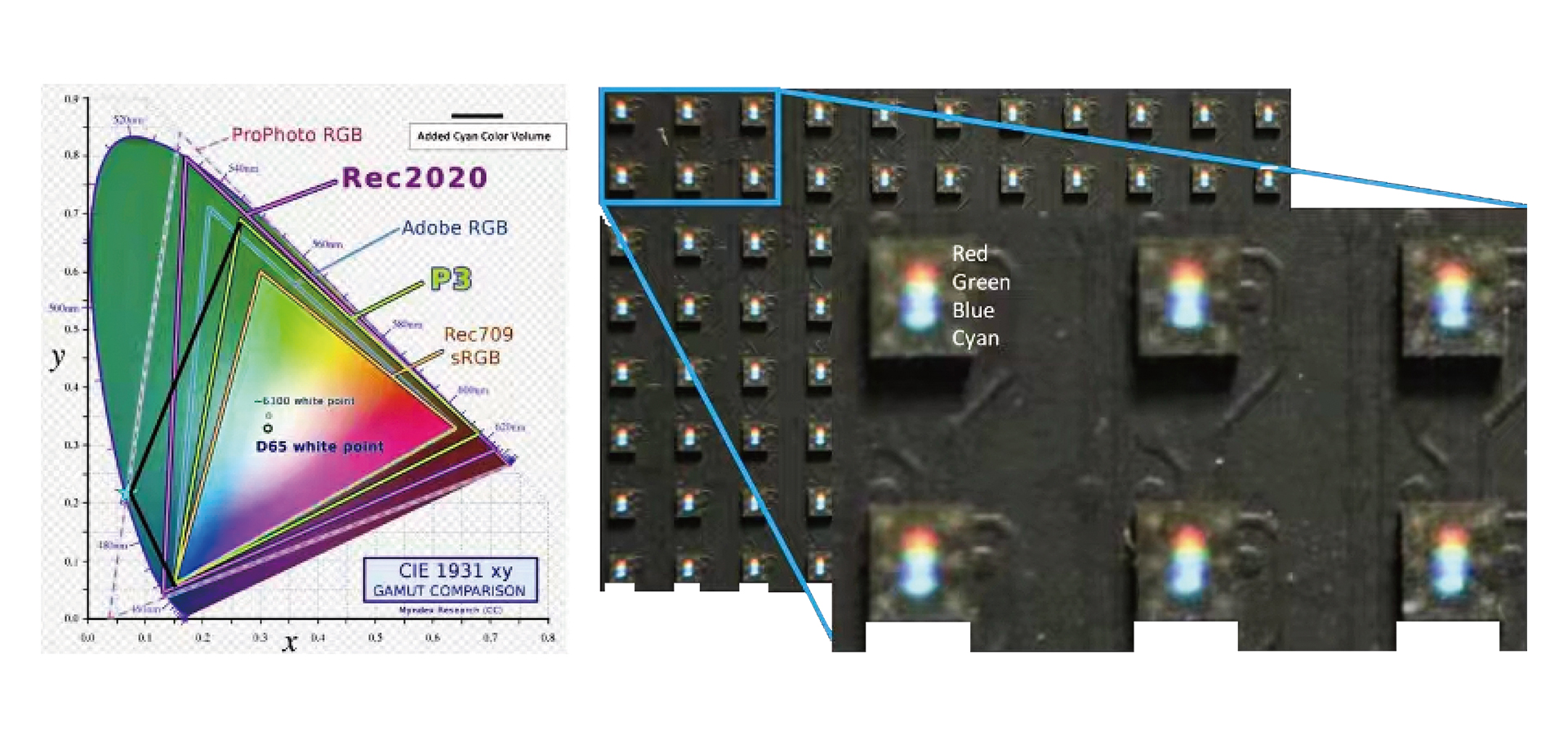

Advanced RGB+Cyan technology
The RGB+Cyan technology adds a cyan channel, enabling coverage of a wider color gamut(can reach up to 150% of DCI-P3), making images more realistic and vivid It reduces errors in color mixing, enhancing the accuracy of color reproduction.
RGBC improves color transitions and reduces banding effect, enhancing overall image quality.
High refresh rate (7,680 Hz), high grayscale (16-bit), wide color gamut, and ultra-high resolution.
Unparalleled Visual Experience
High refresh rate(7,680 Hz), high grayscale (16bit), wide color gamut, ultra-high resolution, perfect visual experience.
Panel brightness adjustable (up to 1000nits(RGB)/500nits(C)), not dazzling even under indoor sunlight.
Ultra-Thin, Ultra-Light, Durable
Made with a new generation of die-cast aluminum, it
guarantees excellent flatness.No air conditioning, no
fan operation, creating a quiet working environment
in power-saving mode.
Snap Lock Panel System
Aluminum diecasting material giving low tolerance
of panel for install.

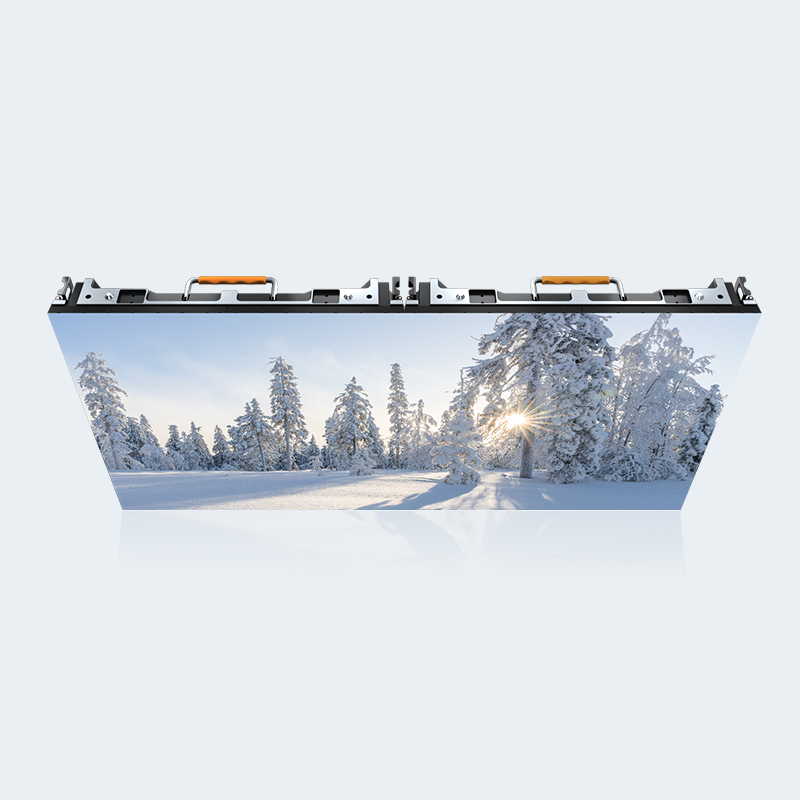

Optional adjustable angle lock enables flat and curve of the screen for rental usage, while guaranteeing highest level of alignment image performance in all circumstances.
Edge Protection Solution
The AirULTRA-C(RGBC) was designed with auto edge protection on each panel corner, it provides a safety of panel and reducing pixel damage, which is ideal for rental stages applications.
Product parameters
| AirULTRA-C (RGBC) 2.6 | AirULTRA-C (RGBC) 3.9 | |
| Physical Pitch（mm） | 2.6 | 3.9 |
| Pixel Density | 147,456 pixels/m² | 65,536 pixels/m² |
| 36,864 pixels/panel | 16,384pixels/panel | |
| LED Module Dimensions (mm) | 250 × 250 | 250 × 250 |
| Panel Dimensions (W × H × D) (mm) | 500 × 500 × 86 | 500 × 500 × 86 |
| Physical Resolution of Module (W × H) | 96 × 96 | 64 × 64 |
| Physical Resolution of Panel (W × H) | 192 × 192 | 128 × 128 |
| Weight Per Panel |
9 ± 0.3 kg/Panel |
9 ± 0.3 kg/Panel |
| Weight Per ㎡ |
36 ±1.2 kg/㎡ |
36 ±1.2 kg/㎡ |
| Processing | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 50,000 : 1 | 20,000 : 1 |
| Average Power Consumption(w/panel) | 132 | 132 |
| Max Power Consumption(w/panel) | 400 | 400 |
| Brightness(nits) |
1,000nits(RGB) 500nits(C) |
1,000nits(RGB) 500nits(C) |
| Refresh Rate | 7,680 Hz | 7,680 Hz |
| Horizontal Viewing Angle | 170° | 170° |
| Vertical Viewing Angle | 170° | 170° |
| Expected LED Lifetime (Max) | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front and Back | Front and Back |
| IP Rating | IP30 | IP30 |
