AirSPORT-M
SKU: AirSPORT-M 3.9/5.2/8/10
Category: Outdoor
CreateLED's AirSPORT-M LED display is particularly made for stadium.
The broad viewing angles, high contrast ratio, superior colour fidelity and mechanical accuracy of the AirSPORT-M range combine impeccably to form the ultimate high-resolution perimeter sports LED display. AirSPORT-M is specifically designed to comply with all regulations laid down by the internationally recognized sporting bodies. Reliability is guaranteed by built-in double power and data , making the AirSPORT-M the most stable perimeter system on the market.
Ultra Performance Sports Display
• FIFA Stadium standard
• Broad Viewing Angle
• Quick to Install and Dismantle
Up to 6,000 nits brightness
Achieve the best effort in all weathers 6,000 nits brightness
High Environmental Resistance
IP65 for front&back, anti-collision, ultraviolet-proof, dust-proof, etc.
Comprehensive protection design assures the performance and stability.

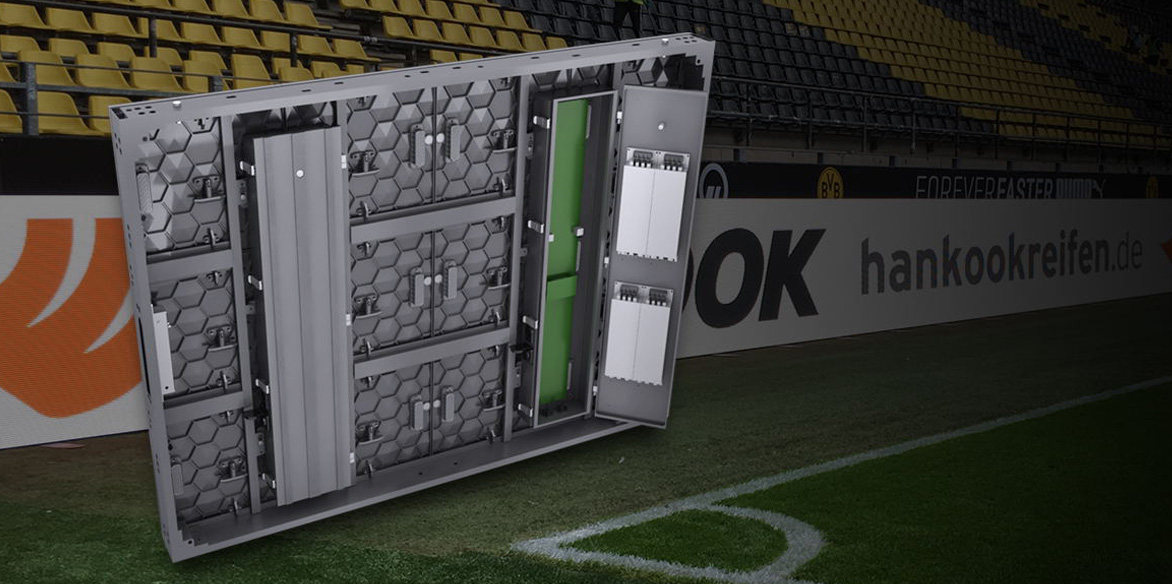

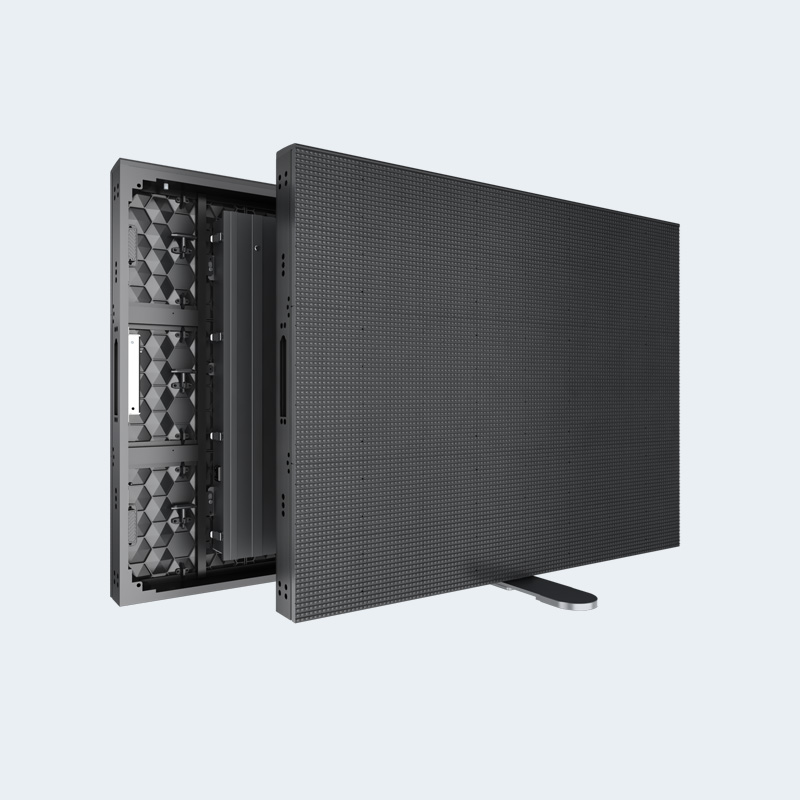

Rapid Install&Maintenance

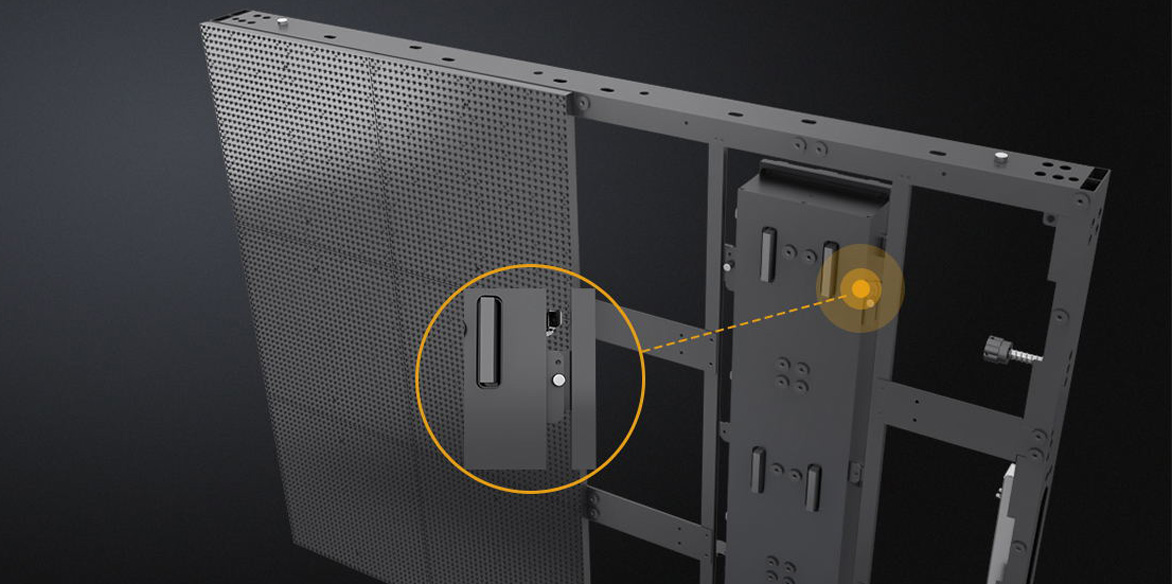

Only two screw hole for front service.
Tool-free for back service, pure manual.
High integrated wires control&management.

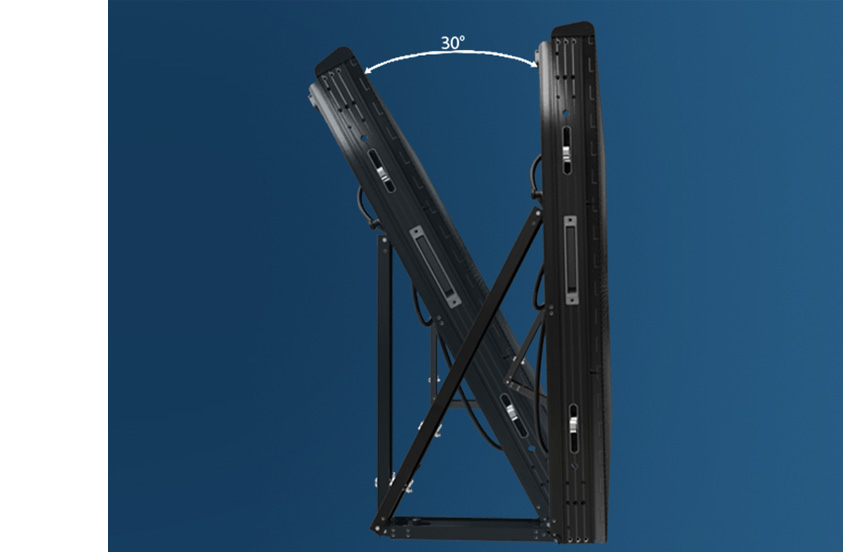

Adjustable Screen Angle
The screen angle can be adjusted between 0 ° ~ 30 ° to ensure the best viewing angle for the audience.
Minimalist Design,Feature-Jammed

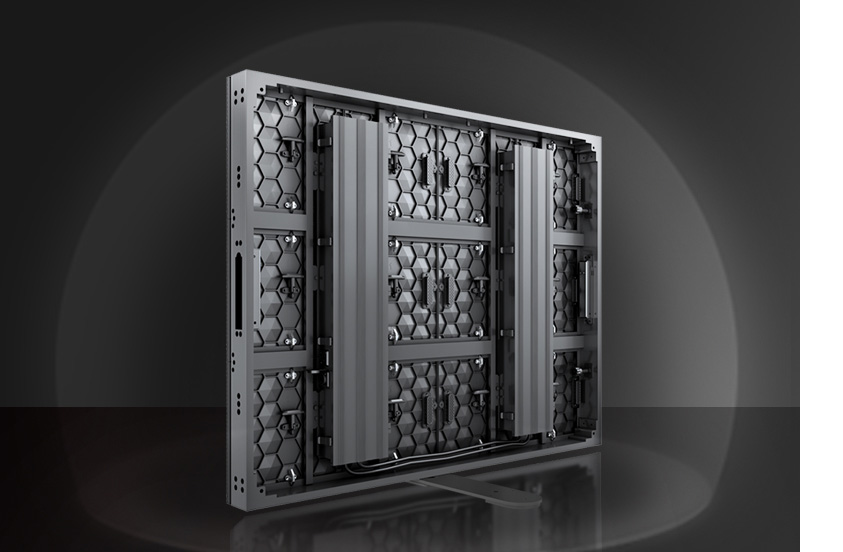

High resistant structure, brief&modular power box design.
Thinner than industry average, more space-saving.
Support IR function.
Maintenance friendly, fast onsite checkup.
N+1 route support brings more power on display.
Product parameters
| AirSPORT-M | AirSPORT-M | |
| Physical Pitch（mm） | 8 | 10 |
| Pixel Density | 15,625 pixels/m² | 10,000 pixels/m² |
| 19,200 pixels/panel | 12,288 pixels/panel | |
| LED Module Dimensions (mm) | 320× 320 | 320× 320 |
| Panel Dimensions (W × H × D) (mm) | 1280 × 960 × 153 | 1280 × 960 × 153 |
| Physical Resolution of Module (W × H) | 40 × 40 | 32 × 32 |
| Physical Resolution of Panel (W × H) | 160 ×120 | 128 ×96 |
| Weight Per Panel(kg/panel) | 39.2±3.5 | 39.2±3.5 |
| Processing | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption(w/panel) | 284 | 384 |
| Max Power Consumption(w/panel) | 860 | 860 |
| Brightness(nits) | 6000 | 6000 |
| Refresh Rate | 3,840 Hz | 3,840 Hz |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 120° | 120° |
| Expected LED Lifetime (Max) | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front and Back | Front and Back |
| IP Rating | IP 65 | IP 65 |
