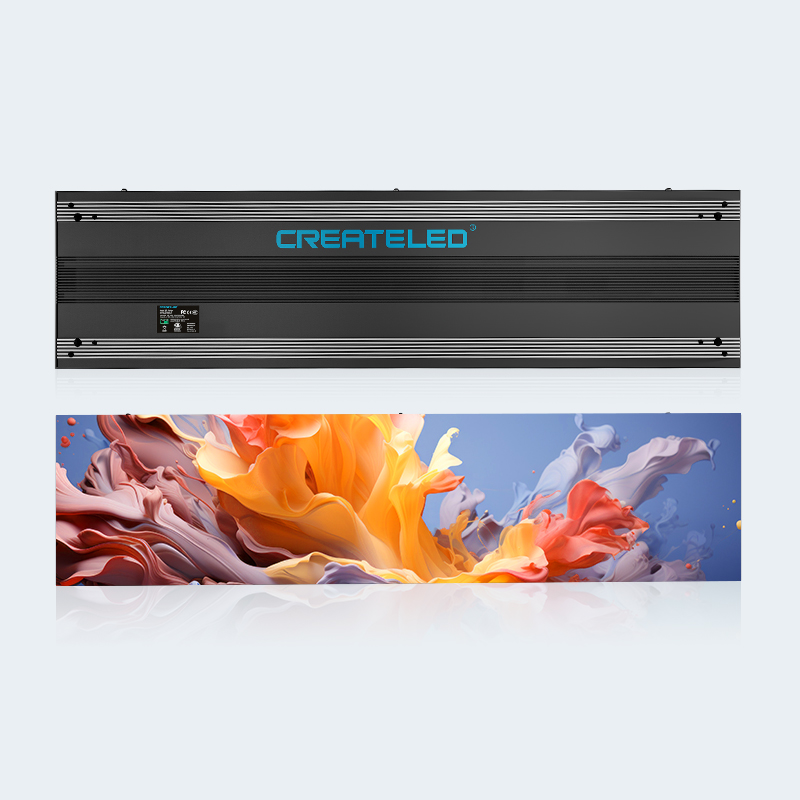

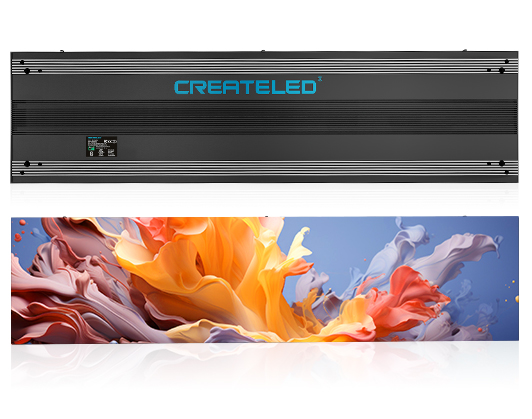

AirMEDIA-Pro
SKU: AirTV-Pro 1.5/1.9/2.5/2.6
Category: Indoor
Unique Panel Dimension & Multiple Configuration Options
The AirMEDIA-Pro is based on CreateLED’s classic AirMAG range and is available in 3 different length options.
The aluminum profile cabinet is fully enclosed and uses CNC precision to ensure a mechanically seamless display, making it neat and tidy from all angles.

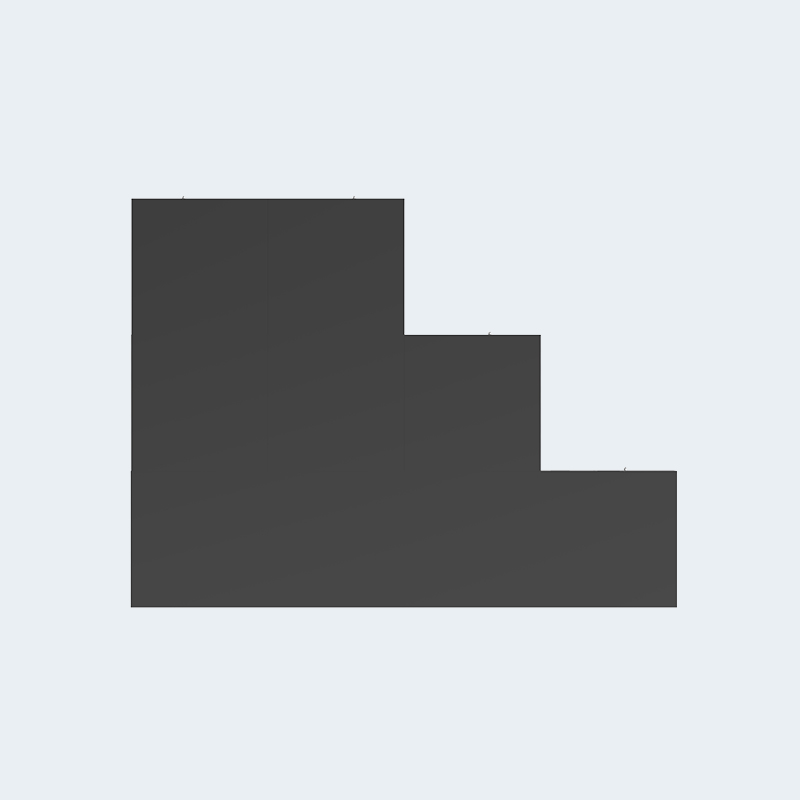

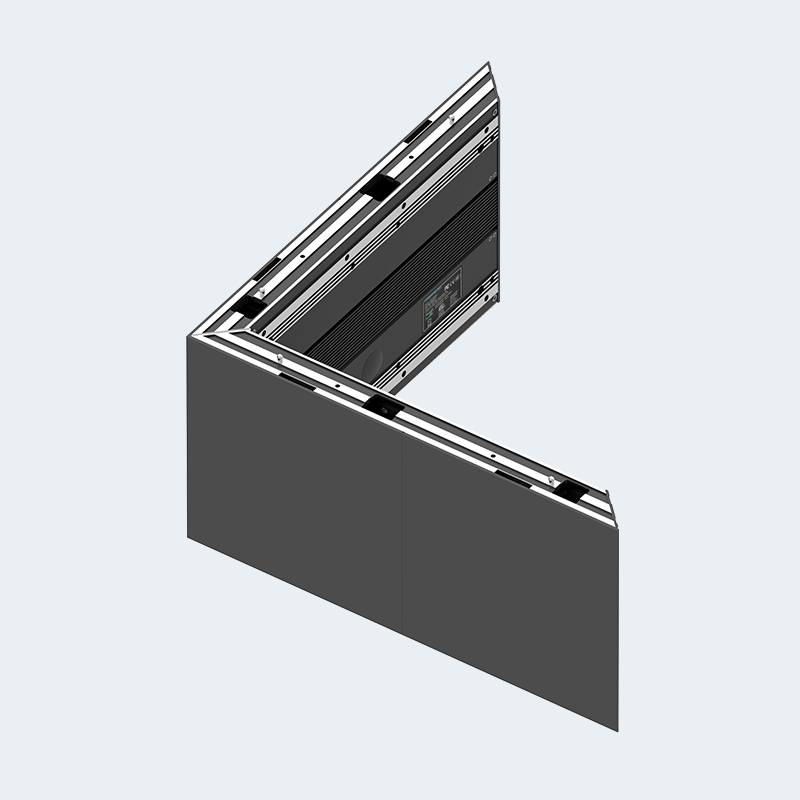

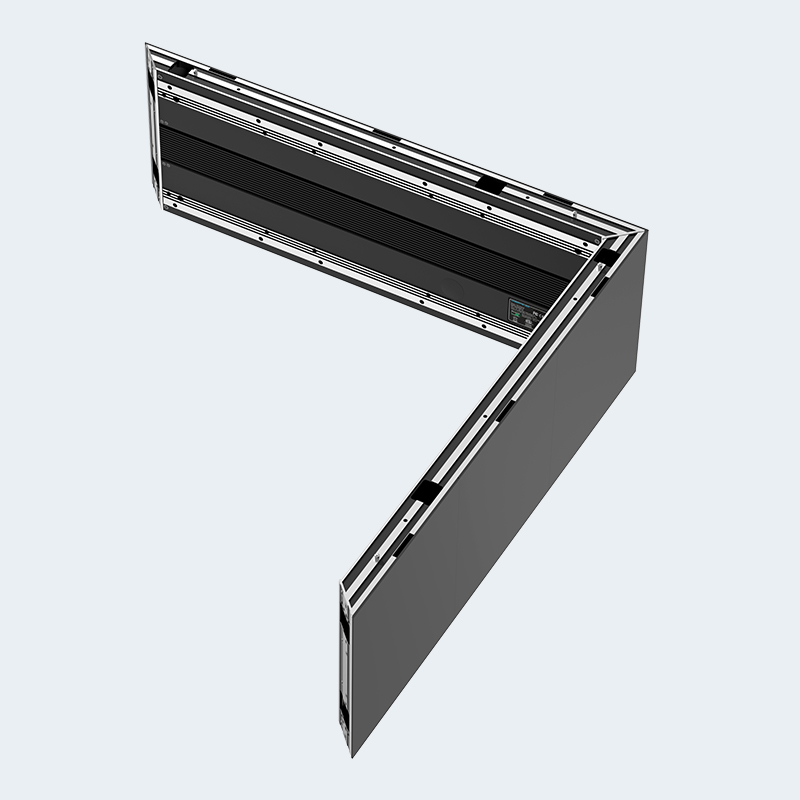

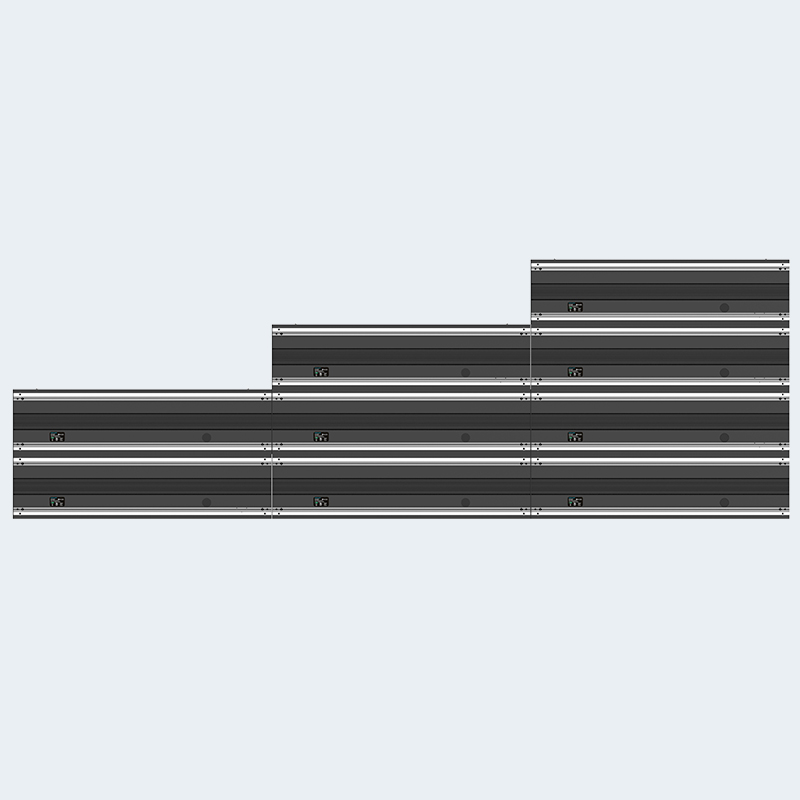

The versatile design allows for multiple configurations to meet various needs.

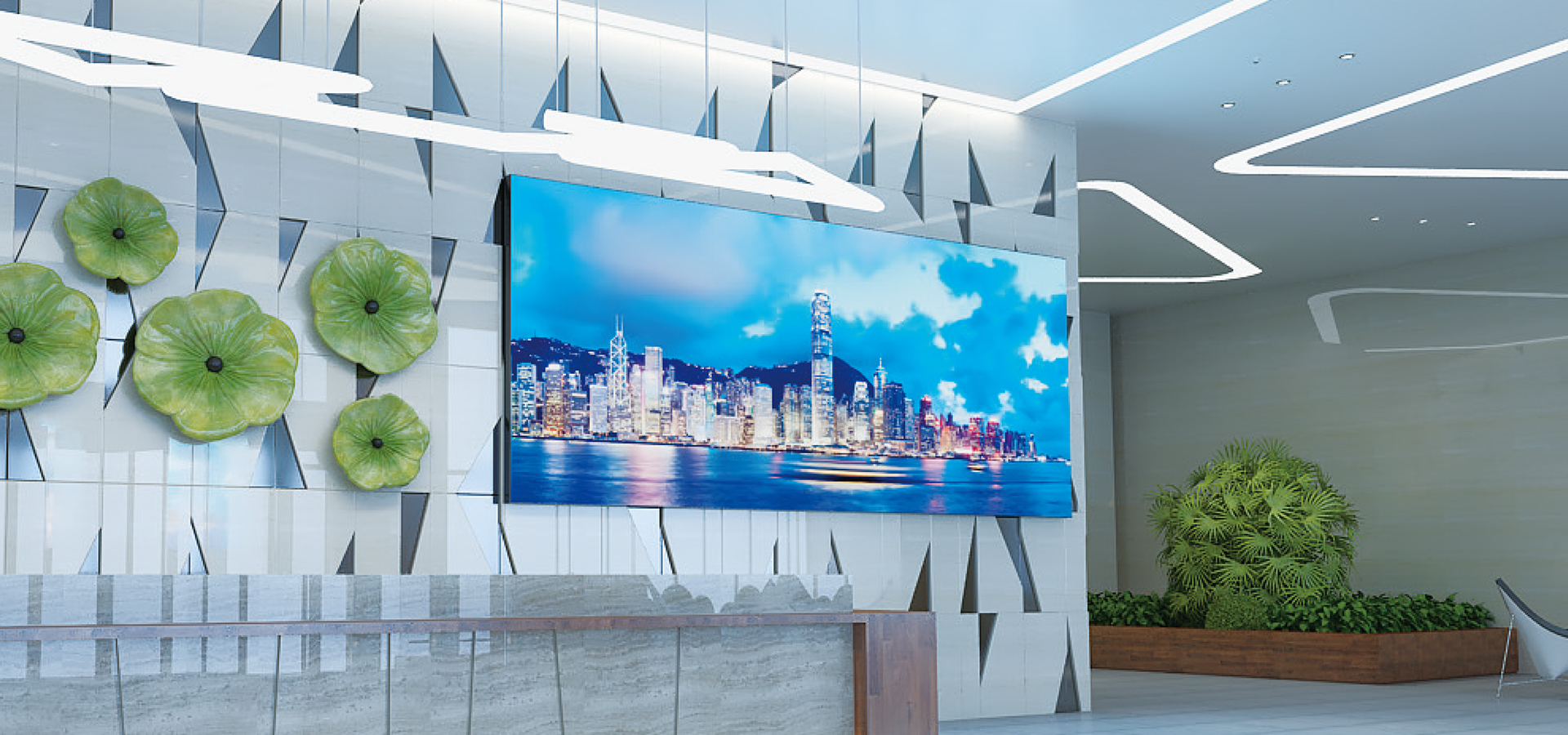

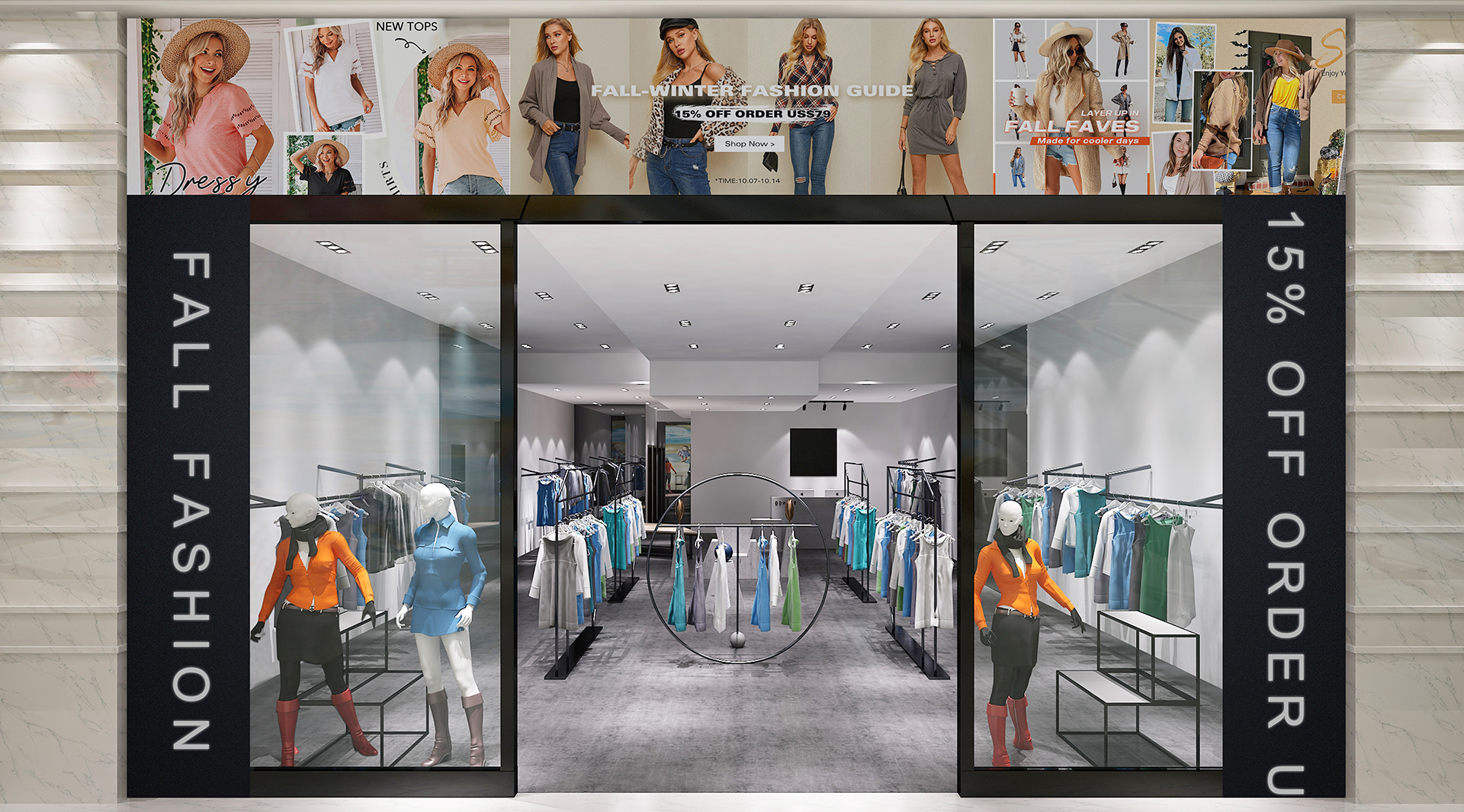

Whether for large displays or creative installations, the AirMEDIA-Pro ensures superior display quality and an exceptional visual experience, making it suitable for a variety of applications.
Advanced High Definition Indoor LED Display
• Super Slim Fully Enclosed Panel Design
• Unique Long Format Horizontal Panel for Quicker Installation
Product parameters
| AirMEDIA-Pro (Indoor) | AirMEDIA-Pro 1.5 |
AirMEDIA-Pro 2.5 |
| Physical Pitch（mm） | 1.5625mm | 2.5mm |
| Pixel Density | 409,600 pixels/m² | 160,456 pixels/m² |
| 102,400 pixels/panel | 40,000 pixels/panel | |
| LED Module Dimensions(mm) | 250 × 250 | 250 × 250 |
| Panel Dimensions (W × H × D) (mm) | 1000 × 250 × 44 | 1000 × 250 × 44 |
| Physical Resolution of Module(W×H) | 160 × 160 | 100 × 100 |
| Physical Resolution of Panel(W×H) | 640 × 160 | 400 × 100 |
| Weight Per Panel | 7.7 kg/panel | 7.7 kg/panel |
| Weight Per m² | 30.8 kg/㎡ | 30.8 kg/㎡ |
| Processing | 14 bit | 14 bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption(W/㎡) | 156-260 | 156-260 |
| Max Power Consumption(W/㎡) | 520 | 520 |
| Brightness(nits) | 600-800nits | 1000nits |
| Refresh Rate | 3,840 Hz | 3,840 Hz |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Expected LED Lifetime (Max) | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
| IP Rating | IP 30 | IP 30 |
